This is the FSCUT2000S motion controller-a dedicated control unit for 1–3 kW fiber laser sheet cutting machines. It handles XY axis motion, auto focus, and gas control on gantry or cantilever cutters used in job shops for enclosures, brackets, and structural steel parts.
Features
Microchannel Water Cooling
Integrated liquid cooling maintains stable internal temperature during continuous operation-prevents thermal drift and ensures long-term cutting accuracy.
Industrial-Grade EMC Protection
Shielded enclosure + high-performance filters block external EMI from servos, welders, or VFDs-guaranteeing reliable signal integrity in harsh factory environments.
Why Choose Us
OEM & Customization Ready
Offer customized I/O configurations or communication protocols (Modbus, CAN)
Provide SDK for integration with your HMI or remote monitoring platform
Support private labeling and co-branded documentation
Quality Assurance
CE certified
Every unit undergoes 72-hour continuous cutting validation before shipment
Fast Sample & Delivery
Evaluation units available for qualified partners (refundable deposit)
Standard models shipped within 5–7 working days
Global After-Sales Support
12-month warranty on all components
Lifetime technical support via WhatsApp / WeChat / Email
Free parameter tuning guides and troubleshooting videos
Procurement Services
MOQ
1 unit for testing; volume pricing from 5 units.
Packaging
Controller packed in anti-static foam inside reinforced export carton
Accessories (cables, manuals) sealed in labeled poly bags
Shipping Options
Express (DHL/FedEx/UPS): 3–7 days worldwide
Sea freight for bulk orders (FOB Qingdao / Jinan)
Payment Methods
T/T: 30% deposit, 70% before shipment
Alibaba Trade Assurance (recommended for first-time buyers)
L/C accepted for orders over $ 5,000
Documentation
CE certificate, English user manual, wiring diagram, and commercial invoice provided.
FAQ
Is this an open-loop or closed-loop system?
The FSCUT2000S is an open-loop stepper/servo hybrid system, ideal for cost-effective sheet cutting where ultra-high dynamic response isn't required. For fully closed-loop applications, consider the FSCUT8000 series.
Can it control an automatic focus cutting head?
Yes-it supports standard analog/digital signals for auto-focus heads (e.g., BM109, Precitec) and can synchronize focal position with cutting path.
Does it include nesting software?
It supports DXF/G-code import but does not include nesting software. However, it's compatible with popular third-party nesting platforms like Lantek, SigmaNEST, or FastCAM.
How is cooling achieved?
Via an integrated microchannel water-cooling block-connect to your machine's chiller loop (5–10 L/min flow rate recommended).
What languages does the HMI support?
Default interface supports English, Chinese, Spanish, Russian, and Arabic. Additional languages available upon request.

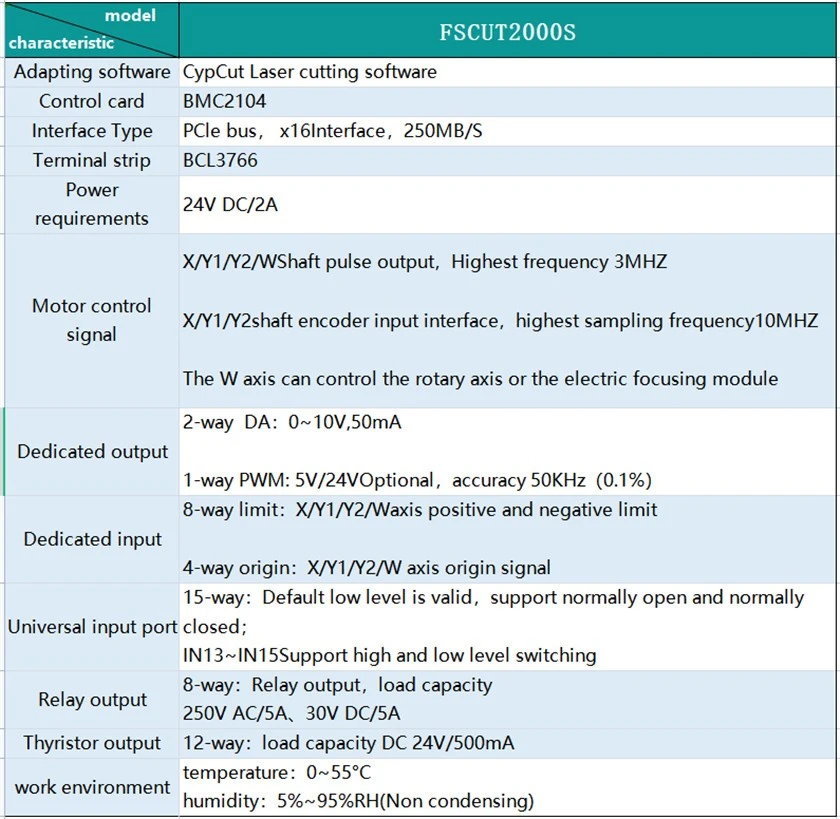

Specifications

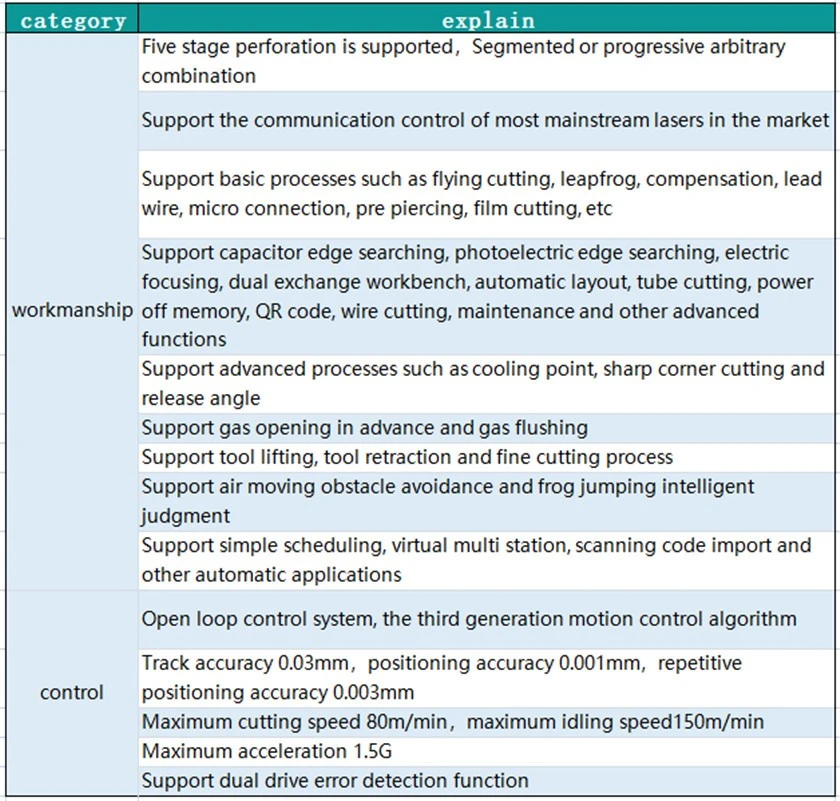

Performance Characteristics

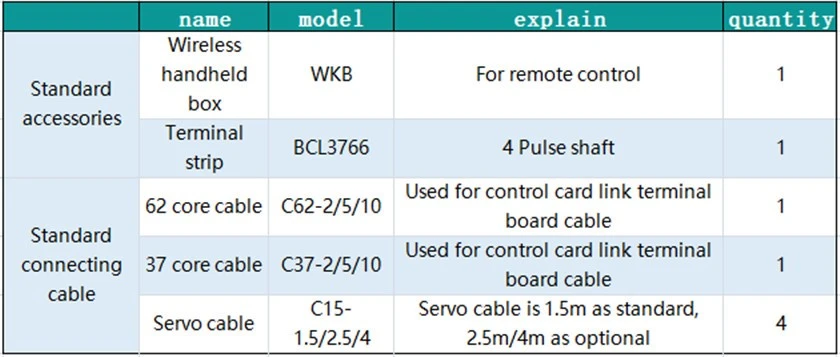

Parts
