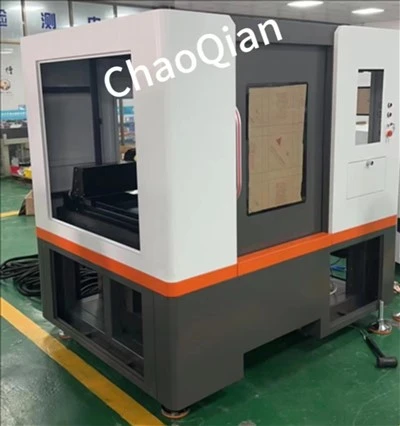

Laser Cutting Machine
Jinan Chaoqian Machinery Technology Co., Ltd. was established in 2019, located in Jinan, Shandong Province. Since its establishment, the company has focused on laser industrial applications，we are committed to the sales and service of laser accessories, pneumatic components and other mechanical accessories.
Why Choose Us
Development Concept
The development concept is user-centered, product- and service-oriented, aimed at saving costs for customers, providing considerate and high-quality services, and ensuring customers feel more reassured.
Production Capacity
Since its establishment, the company has focused on laser industrial applications. We are committed to the sales and service of laser accessories, pneumatic components, and other mechanical accessories.
Product Features
Our products feature multiple fiber interfaces, such as QBH and QCS, and can be adapted to various mainstream lasers.
Accurate cutting accuracy
Laser Cutting Machine generates high-energy laser beams through fiber lasers and focuses them on the surface of the workpiece, so that the irradiated area melts instantly, thus achieving precise cutting. At the same time, the positioning accuracy of our machine reaches ±0.05mm, and the repeat positioning accuracy is ±0.03mm.
Fast cutting
The fiber laser is used to efficiently convert electrical energy into light energy, with an electro-optical conversion rate of up to 25%-35%. In addition, laser transmission has the characteristics of low loss and concentrated energy. Secondly, the idle running speed of our machine can reach 120m/min, and the maximum linkage speed is 100m/min.
Durability
Compared with traditional CO2 laser sources, our fiber laser source has a longer service life, generally up to 100,000 hours, while the service life of traditional CO2 laser sources is usually between 20,000-30,000 hours. Secondly, our machine adopts a self-developed plug-in double-keel bed structure, which not only enhances the stability of the equipment, but also improves its vibration resistance and prolongs its service life.
Factors to Consider When Choosing a Manufacturer
Cutting Quality and Precision
When choosing a laser cutting machine manufacturer, I consider the cutting quality and precision of their machines. I look for manufacturers that consistently deliver clean and precise cuts, ensuring a high standard of quality in my finished products. Additionally, I take into account the technology and materials used in the machines, as these can affect the cutting performance.
Pricing
As pricing can significantly impact my budget, I research various laser cutting machine manufacturers to compare their prices. I weigh this against the features and benefits offered by each manufacturer to ensure I'm getting the best value for my money. Transparency in pricing is also essential, as hidden costs can quickly add up and affect my bottom line.
Service and Support
When selecting a manufacturer, I prioritize those that offer exceptional service and support. This includes proper communication, reliable customer service, and timely assistance in addressing concerns or solving issues. It's crucial for me to partner with a responsive manufacturer that values my time and helps me keep my operations running smoothly.
Machine Compatibility
Finally, I assess each manufacturer's machine compatibility with my production needs and processes. This involves considering factors such as the machine's size, power, and operational capabilities. Additionally, I check for compatibility with the materials I work with and any software requirements that may be necessary for efficient production.
Automotive Industry
In the automotive industry, laser cutting machine stands as a pivotal tool, especially for crafting intricate components and customizations.
Aerospace Industry
In the aerospace industry, the application of laser cutting machine is crucial. The need for lightweight, high-strength materials in this sector cannot be overstated.
Construction Industry
Laser cutting machine has also made a significant impact in the construction industry. Its use in fabricating steel frameworks and detailed architectural elements has brought a new level of creativity and precision to the field.
Medical Device Industry
In the realm of medical device manufacturing, the precision and versatility of laser cutting machine are indispensable. This process, often employing fiber lasers and CO2 laser systems, allows for the creation of surgical instruments and medical implants with exceptional accuracy.
Electronics Industry
Laser cutting machine plays a pivotal role in the electronics industry, especially in the miniaturization of electronic devices. The industry, constantly pushing the boundaries of how small yet efficient devices can be, relies heavily on the precision cutting capabilities of laser technology.
What Are the Main Components of a Laser Cutting Machine
Machine bed part: The machine bed of the laser cutting machine, the mechanical part that realizes the movement of the X, Y, and Z axes, including the cutting work platform. It is used to place the workpiece to be cut, and can move correctly and accurately according to the control program, usually driven by a servo motor.
Laser generator: A device that generates a laser light source. For laser cutting applications, except for a few occasions where YAG solid-state lasers are used, most of them use CO2 gas lasers or fiber lasers with high electro-optical conversion efficiency and high output power. Because laser cutting requires high beam quality, not all lasers can be used for cutting.
External optical path: Refraction mirror, used to guide the laser in the required direction. In order to prevent failure of the beam path, all mirrors should be protected by protective covers, and clean positive pressure protective gas should be introduced to protect the mirrors from contamination. A well-performing set of lenses will focus a beam with no divergence angle into an infinitely small spot.
Numerical control system: Control the machine bed to realize the movement of X, Y and Z axes, and also control the output power of the laser.
Regulated power supply: Connected between lasers, CNC machine tools and power supply systems. It mainly plays the role of preventing external grid interference.
Cutting head: It mainly includes parts such as cavity, focusing lens holder, focusing mirror, capacitive sensor and auxiliary gas nozzle. The cutting head driving device is used to drive the cutting head to move along the Z-axis according to the program, and is composed of a servo motor and transmission parts such as a screw rod or a gear.
Operating table: Used to control the working process of the entire cutting device.
Chiller: Used to cool the laser generator. Laser is a device that converts electrical energy into light energy. For example, the conversion rate of CO2 gas laser is generally 20%, and the remaining energy is converted into heat. The cooling water takes away the excess heat to keep the laser generator working properly.
Gas cylinder: Including the working medium gas cylinder and auxiliary gas cylinder of the laser cutting machine, which are used to supplement the industrial gas for laser oscillation and the auxiliary gas for supplying the cutting head.
Air compressor, air storage tank: Provide and store compressed air.
Air cooling dryer and filter: Used to supply clean dry air to the laser generator and beam path to keep the path and reflector working normally.
Exhaust dust collector: Extract the smoke and dust generated during processing, and filter it, so that the exhaust gas discharge meets the environmental protection standards.
Slag discharger: Remove the leftover material and waste generated during processing.
FAQ
As one of the most professional laser cutting machine manufacturers and suppliers in China, we're featured by quality products and competitive price. Please rest assured to buy high-grade laser cutting machine for sale here from our factory.
