Laser System
Jinan Chaoqian Machinery Technology Co., Ltd. was established in 2019, located in Jinan, Shandong Province. Our laser system includes fiber laser machine control system, fiber laser cutting motion controller and laser cutting control system. Our system supports a variety of processing materials and processes, such as metal, non-metal, composite materials, etc., and is widely used in automotive manufacturing, aerospace, electronics, medical equipment, and other fields.
Why Choose us
company Mission
The development concept is user-centered, product- and service-oriented, aimed at saving costs for customers, providing considerate and high-quality services, and ensuring customers feel more reassured.
Company Production
Since its establishment, the company has focused on laser industrial applications. We are committed to the sales and service of laser accessories, pneumatic components, and other mechanical accessories.
Company Service
We also provide 24-hour online service, which can promptly respond to your questions and give you feedback on the progress of your order.
The laser system is a crucial element of a laser cutter, responsible for managing and regulating its various functions to guarantee precise and efficient cutting operations. It consists of hardware and software components that work together to control the laser source, beam delivery system, and cutting head.
Classification of Fiber Laser Accessories

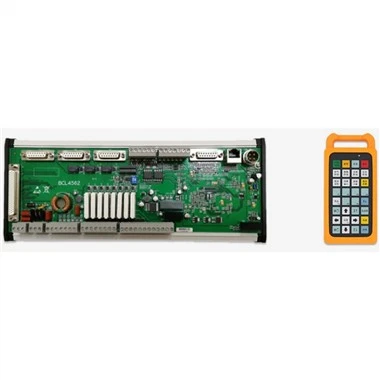

Fiber Laser Machine Control System
FSCUT1000S system is a low-cost fiber laser cutting solution cut from FSCUT2000C medium power laser cutting system. The system combines the motion control card and the capacitor height regulator into one, which is cost-effective.

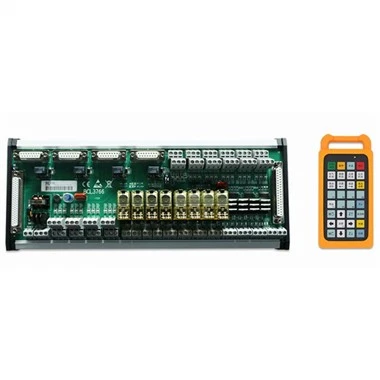

Fiber Laser Cutting Motion Controller
FSCUT2000S medium power laser cutting system is a full-featured open-loop control system specially launched for sheet metal processing industry. It is an upgraded version of FSCUT2000 system with convenient installation, simple debugging, excellent performance and complete solutions.
Laser Cutting Control System
FSCUT3000S is a control system developed for pipe processing, which supports high-precision and efficient cutting of square pipe, round pipe, runway type and oval tensile pipe, angle steel and channel steel.
Specifications of Laser System
Functions of Laser System
Excellent dynamic response capability
The Fiber Laser Machine Control System is built with high-performance servo drive technology and precision sensor systems. The precision sensor system can respond to processing instructions in a very short time by real-time monitoring and adjusting the operating status of the laser processing equipment, thereby achieving efficient dynamic control.
Excellent compatibility
Our system is compatible with a variety of laser cutting machines, laser welding machines, and other equipment, and supports the collaborative work of lasers of different brands and models with work platforms. Secondly, our system adopts an open architecture design, supports a variety of industrial control protocols, and can be flexibly integrated with existing production lines or automation equipment to meet the needs of different production environments.
Excellent cooling system
Our system adopts advanced air-cooling cooling technology and is equipped with multiple high-performance fans. These fans are precisely calculated and laid out to form a good airflow circulation. Secondly, our control system can work stably in a high-temperature environment and can operate continuously in an environment of up to 45°C, ensuring the long-term efficient and stable operation of the system.
Initial Installation:
Ensure the controller is installed in a stable and vibration-free environment. Any external vibrations can affect the accuracy of the cutting motion. Mount it on a solid and flat surface, away from sources of mechanical noise and interference.
Axis Calibration:
Calibrate the X, Y, and Z axes of the cutting system regularly. This involves using precision measuring tools to verify the position accuracy of each axis. For example, a laser interferometer can be used to measure the actual movement of the axes against the commanded values and make necessary adjustments.
Laser Alignment:
Align the laser beam precisely with the cutting head and the workpiece. Use alignment tools and procedures provided by the manufacturer to ensure the laser is centered and focused accurately. Even a slight misalignment can lead to inaccurate cuts.
Laser System Process Characteristics
●Support pipe center real-time deviation compensation, reduce clamping requirements for pipes, Greatly improve the accuracy of piercing.
●Support cutting of angle steel and channel steel.
●Support the setting of separate corner process to improve the quality of pipe corner cutting.
●Support automatic loading and unloading and cyclic processing, Support standard automatic feeding action.
●Compatible with all functions of FSCUT2000 laser cutting system.
Laser System Quality Testing
Perform regular accuracy tests
Use test patterns and calibration specimens to check the accuracy of the cutting system regularly. For example, cut a series of geometric shapes with known dimensions and measure the actual cut dimensions to identify any deviations.
Statistical process control
Implement statistical process control methods to monitor the cutting process over time. Analyze data such as cutting dimensions, surface finish, and cutting speed to detect any trends or variations that May indicate a loss of accuracy.
Visual inspection
Conduct visual inspections of the cut parts to check for any signs of inaccuracies such as uneven cuts, rough edges, or misaligned features. This can help identify potential issues early and allow for corrective actions to be taken.
Application Scope of Laser System
Metalworking
In the metalworking industry, our products can efficiently control the precise movement of the laser cutting head, thereby achieving high-precision cutting of a variety of metal materials such as stainless steel, aluminum alloy, carbon steel, etc.
Aerospace
In the aerospace field, Fiber Laser Cutting Motion Controller is used in the manufacture of precision parts. Its excellent stability and real-time adjustment capabilities ensure the precise coordination between the cutting head and the material during the processing process, especially when processing thin-walled complex materials, which can effectively avoid deformation or damage caused by excessive heat-affected zones.
Automotive Manufacturing
Our controllers are widely used in automotive manufacturing to cut body parts, engine parts, and various metal accessories.
Electronics and Precision Instruments
In the field of electronics and precision instruments, laser cutting technology is used to manufacture circuit boards, metal casings, and other small precision parts. Our products can accurately control the position of the laser focus to ensure the accuracy of each cutting point and avoid the impact of errors on product performance.
Packaging and Shipping
|
Packaging: |
Wrapped by proctective film; |
|
Packed by standard import & export wooden cases or carton boxes. |
|
|
Shipping: |
By logistics; by automobile; by train; by shipping; by air. |
FAQ
As one of the most professional laser system manufacturers and suppliers in China, we're featured by quality products and competitive price. Please rest assured to buy high-grade laser system for sale here from our factory.
