This is an A6060 linear-motor-driven laser cutter with a 600 × 600 mm marble table and 1.5–4 kW fiber laser. It's built for high-speed, high-repeatability cutting of thin sheets (≤6 mm) in electronics, eyewear, and micro-component industries.
Features

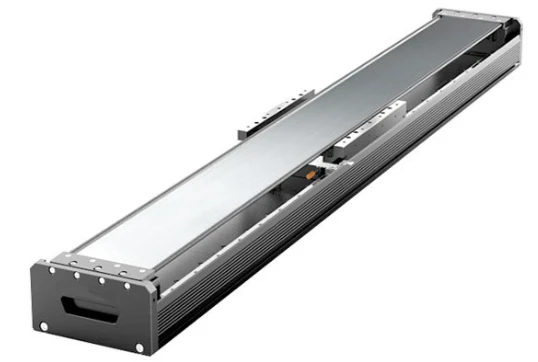

Linear Motor Direct Drive
Electromagnetic direct-drive system eliminates mechanical transmission, delivering ±0.01 mm positioning accuracy, high acceleration (>1.5G), and maintenance-free operation

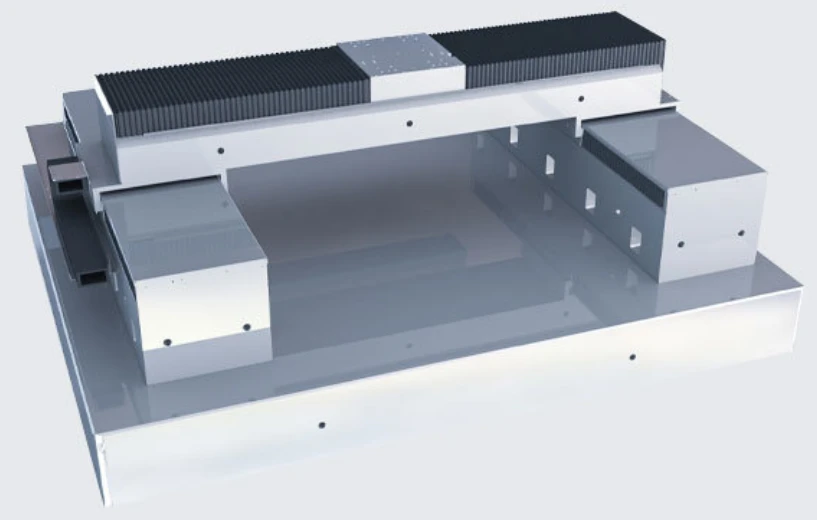

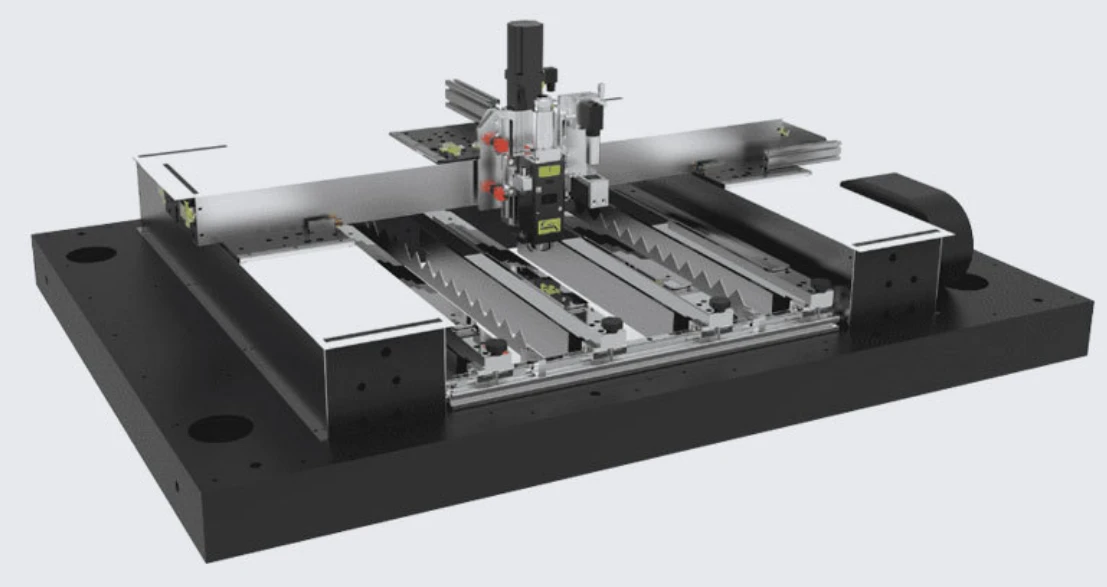

Granite Base with Lightweight Gantry
Machine frame built on a high-rigidity natural granite base for thermal stability and vibration damping; paired with a CNC-milled aerospace aluminum crossbeam for optimal dynamic performance and motion precision.

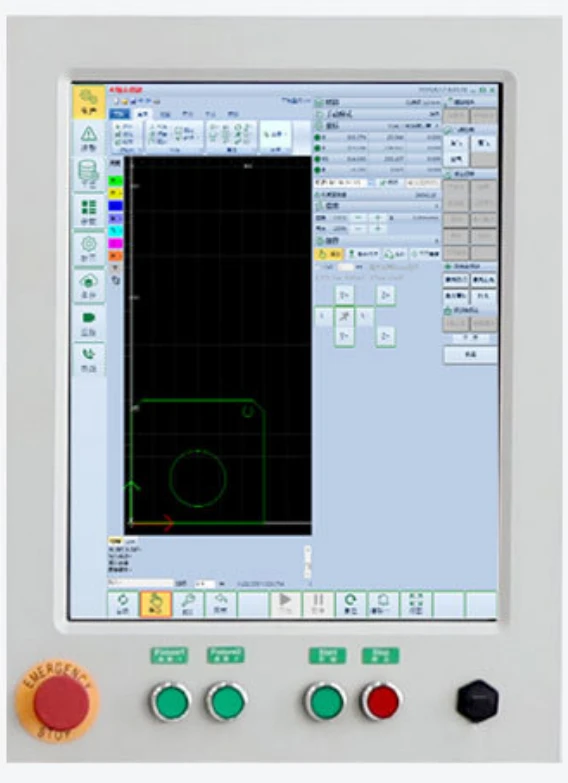

Intelligent EtherCAT CNC System
Real-time EtherCAT-based control platform featuring an intuitive HMI, independent process database, and modular architecture-enabling high feed rates, dynamic response, seamless IIoT integration, and future-ready smart factory connectivity.
Aviation-Grade Aluminum Crossbeam
High strength, lightweight, and low density-with great corrosion and oxidation resistance. Maintains dimensional stability during extended high-speed operation, enabling faster processing without deformation.

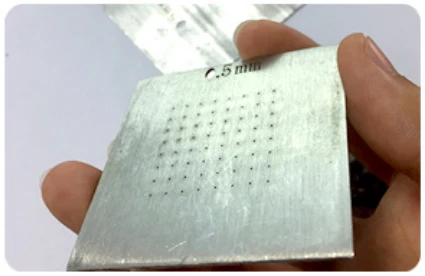

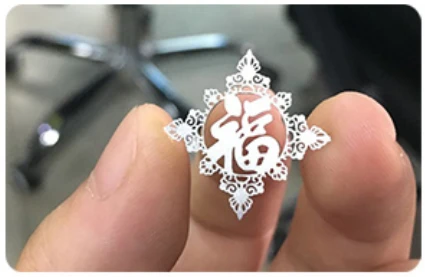

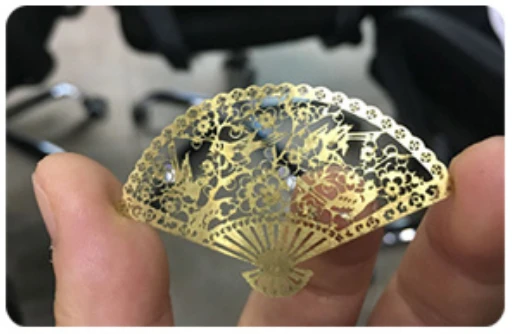

Cutting samples
Why Choose Us
Custom Engineering Support
Tailor machine size, automation level (e.g., auto loader, conveyor), software features, or safety compliance (CE, UL, etc.) to your specific workflow.
Certified Quality Assurance
ISO 9001 and CE certified manufacturing; all critical components undergo 72-hour stress testing before shipment.
Free Sample Cutting Service
Send your material samples-we'll cut them on the A6060 and provide a detailed report with recommended parameters at no cost.
Delivery
Standard units shipped within 30 days; customized systems delivered in 45–60 days with weekly production updates.
Global After-Sales Network
2-year full-machine warranty, 3-year coverage on core parts. Remote diagnostics + local service partners in Europe, Southeast Asia, Middle East, and Latin America.
Procurement Services
MOQ
1 unit – suitable for both single-machine trials and full production line deployment.
Packaging
Fully enclosed export-standard wooden crate with anti-collision foam, moisture barrier, and independent packaging for optical components. Complies with ISTA and ISO shipping standards.
Logistics Options
FOB Qingdao/Shanghai
CIF to your nearest port
DDP (Delivered Duty Paid) available upon request
Payment Methods
T/T: 30% deposit, 70% before shipment
Irrevocable L/C at sight
Flexible terms for repeat or bulk orders
Documentation Provided
Commercial invoice, packing list, CE certificate, ISO 9001 certificate, operation manual (EN), electrical diagrams, and Certificate of Origin.
FAQ
Can this machine cut highly reflective materials like copper or brass without damaging the optics?
Yes. With a high-brightness 3000W+ fiber laser, nitrogen assist gas, and a dedicated anti-reflection cutting head, the A6060 safely processes copper (1–6 mm) and brass with minimal risk to internal optics.
Is the system compatible with automated production lines?
Absolutely. The A6060 supports integration with robotic arms, pallet changers, and factory MES via standard protocols (Modbus TCP, OPC UA). We offer turnkey automation solutions upon request.
What's the required facility setup (power, floor space, etc.)?
Floor space needed: ≥10 m × 8 m
Power supply: 380V ±10%, 3-phase, 50/60 Hz
Total power consumption: 45–65 kW (varies by laser power)
Compressed air: ≥0.6 MPa, clean and dry
Do you provide installation and operator training?
Yes. We offer on-site commissioning and hands-on training (typically 3–5 days). Virtual training is also available for faster deployment.
