Air Cylinder

Your Leading Air Cylinder Supplier

Jinan Chaoqian Machinery Technology Co., Ltd. was established in 2019, located in Jinan, Shandong Province. Our company has more than 150 employees, professional production lines and service teams, which can efficiently complete machine production and assembly. Our air cylinders include rotary cylinder and clamping cylinder. Air cylinders are used for many tasks, including: Clamping, lifting, sorting, pushing objects, light assembly work, and transporting material.

Why Choose us

company Mission

The development concept is user-centered, product- and service-oriented, aimed at saving costs for customers, providing considerate and high-quality services, and ensuring customers feel more reassured.

Company Production

Since its establishment, the company has focused on laser industrial applications. We are committed to the sales and service of laser accessories, pneumatic components, and other mechanical accessories.

Company Service

We also provide 24-hour online service, which can promptly respond to your questions and give you feedback on the progress of your order.

Introduction to Air Cylinder

An air cylinder, also known as a pneumatic cylinder, is a mechanical device that uses compressed air to create linear motion. They are used in many industries, including manufacturing, packaging, and automotive.

Classification of Air Cylinder

Rotary Cylinder
A rotary cylinder, also known as a rotary actuator, is a device that converts linear motion into rotational motion. They are used in many industrial and mechanical systems.

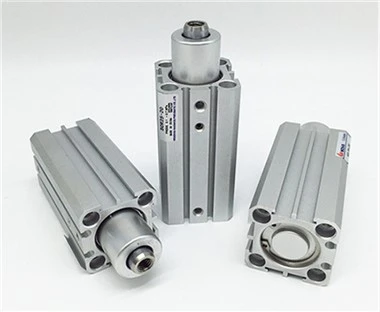

Clamping Cylinder
A clamping cylinder is a pneumatic or hydraulic cylinder specifically designed to hold a workpiece securely in place during a manufacturing process by applying clamping force. It's commonly used in industrial automation to secure components while machining, welding, or assembly takes place.

Functions of Fiber Air Cylinder

Precision

Provides accurate control over rotational movements.

Power

Capable of generating significant torque and force.

Versatility

Suitable for a wide range of industrial applications.

Durability

Designed to withstand harsh operating conditions.

Air Cylinder Installation Steps

There are several mounting options for air cylinders. The mounting option should be selected based on the design of the cylinder, load specifications of the mount, and the environment (i.e. surrounding space and conditions) the system will be placed in.
●Clevis or eye attachment connects the cylinder to the extended end of the piston via threads.
●Double end mounts have a nose and rear which contain threaded bosses for nut attachment.
●Flange mounts are brackets placed on the cylinder.
●Floating mounts are for more convenient installation of the cylinder.
●Foot brackets are flanges that rest underneath the cylinder.
●Lugs are short blocks with holes that attach to the side of the cylinder and allow mounting to another surface.
●Face mount have threaded holes on the front face for attachment.
●Nose mounts are threaded for mounting through a hole with a nut on the other side.
●Rear mount have tapped holes or mounting flanges on the rear.
●Threaded mounts are designed to mount to bolts via threaded holes in the cylinder head or cap.
●Trunnion mounts are specially designed mounting blocks which can be located at the cap, end, or an intermediate location along the cylinder.

Calculate the Force Generated by the Air Cylinder

The theoretical calculations are simpler but do not take into account system friction or the spring force. However, the theoretical calculation allows for a quick determination of the cylinder's max force. The effective force calculation does take friction and the spring force into account. Therefore, the output is lower than the theoretical result.

The basic formula to calculate the theoretical force of a pneumatic cylinder is:

Ft: Theoretical force in Newtons (N)
P: The pressure exerted by the fluid on the piston in Pascals (Pa)
Au: Effective area in contact with the gas in square meters.

Air Cylinder Operation Steps

The clamping process is a process that fixes the workpiece temporarily on the line for press fitting, inspection, assembly, etc.

Quick Operation

Clamps should be operated quickly for the next process. Air cylinders have a short actuation time, contributing to shorter equipment tact time.We recommend a compact and low-cost air cylinder with high clamping force.

Energy Saving

Even if the clamping time is longer, power consumption does not increase. Electric actuators consume power during clamping, but once air pressure is supplied to the air cylinder, it is maintained, so power consumption does not change even if the clamping time is lengthened.

Application of Air Cylinder

Air cylinder products are used extensively across various industries and applications. They are commonly used in industrial automation and robotics systems, material handling applications, and assembly processes. With their fast response time and high repeatability, air cylinders contribute to increased productivity and efficiency in manufacturing processes.
●In the automotive sector, they are utilized in automated assembly lines to position and manipulate car parts.
●In the packaging industry, air cylinders are used to control the movement of packaging materials and products.
●In the medical field, they play a crucial role in precision equipment, such as surgical robots and prosthetic devices.

Packaging and Shipping

Packaging:	Wrapped by proctective film;
Packaging:	Packed by standard import & export wooden cases or carton boxes.
Shipping:	By logistics; by automobile; by train; by shipping; by air.

FAQ

Q: What does an air cylinder do?

A: An air cylinder, also known as a pneumatic cylinder, uses compressed air to create linear motion. This motion can be used to push, pull, lift, or rotate objects.

Q: How long do air cylinders last?

A: The lifespan of a correctly cared for steel cylinder can be 40 years, while aluminium cylinder can serve for up to 20 years and 10000 pressure tests.

Q: Do air cylinders need lubrication?

A: Yes, air cylinders need lubrication to operate smoothly and reliably. Lubrication reduces friction, extends the life of the cylinder, and prevents corrosion.

Q: What size air cylinder do I need?

A: Selecting an oversized cylinder may result in increased costs due to its larger size, while having an undersized cylinder can make it incapable of moving the intended load. A general rule of thumb is to choose a bore size 1.5 to 2 times the diameter of the load being moved.

Q: How strong are air cylinders?

A: A 5-inch bore pneumatic cylinder can output less than 1 ton of force at 100 psi, while a 5-inch bore hydra-pneumatic cylinder can produce up to 10, 15, or 20 tons of force, depending on the design.

Q: How does an air cylinder work?

A: Compressed air is directed into the cylinder;
The air pressure pushes the piston, which moves back and forth within the cylinder;
The piston rod transmits the force and motion of the piston outside the cylinder.

Q: What does stroke mean for air cylinders?

A: The stroke is the total distance that the piston rod is capable of moving in one direction.

Q: Can air cylinders stop mid-stroke?

A: Double-acting cylinders are capable of stopping mid-stroke. For high-accuracy applications, special locking cylinders and position feedback should be used.

As one of the most professional air cylinder manufacturers and suppliers in China, we're featured by quality products and competitive price. Please rest assured to buy high-grade air cylinder for sale here from our factory.
