Surrounding dual platform laser cutting machine
Surrounding dual platform laser cutting machine 1000W-6000W
International standard protection ensures safe production;
High energy-saving efficiency with medium to high power;
Intelligent central control full machine real-time monitoring.
Applicable range: 0.5-35mm carbon steel
0.5-30mm stainless steel, galvanized sheet
0.5-25mm yellow/red copper

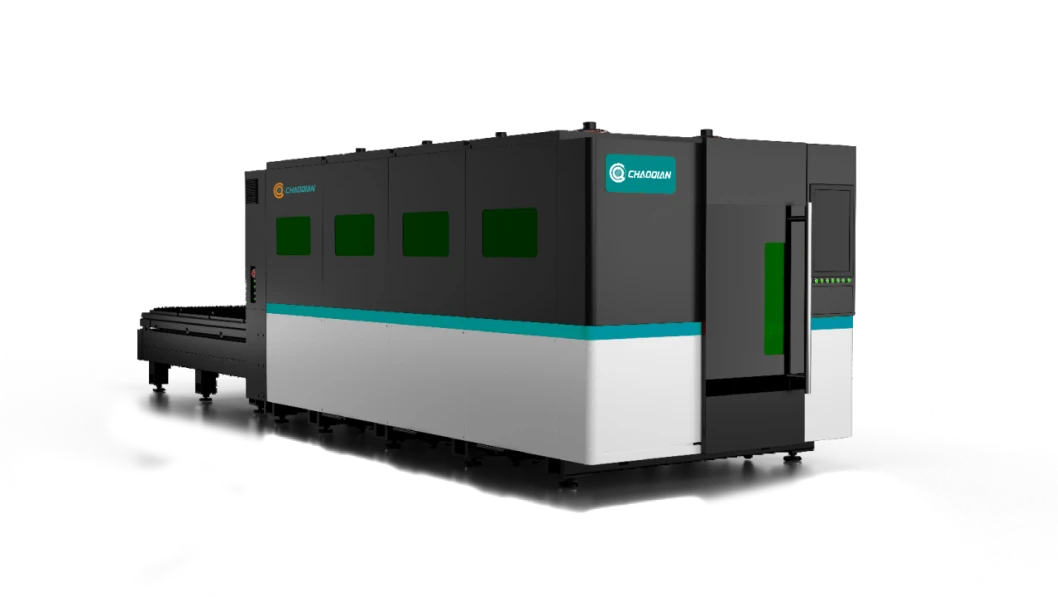

Fully protective design
Fully enclosed protective design to prevent laser damage to personnel
Automatic collection of smoke and dust, more environmentally friendly and pollution-free

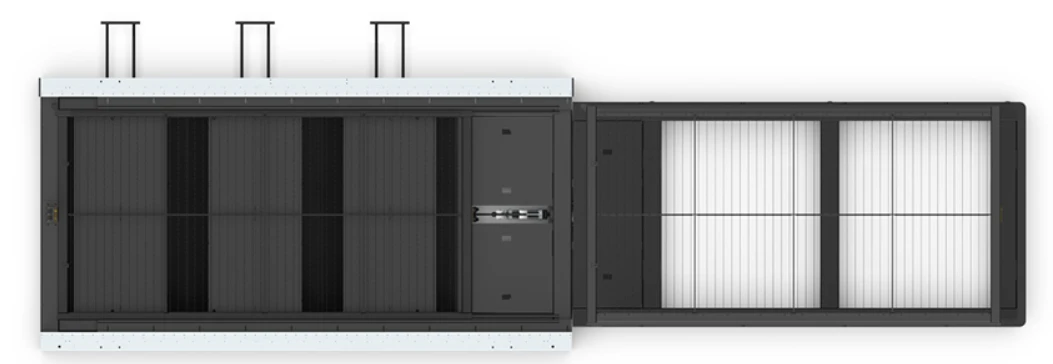

High efficiency exchange station
Simultaneous exchange of dual workstations
Stable and reliable transmission mode, saving loading and unloading time
Full "core" intelligent system
New generation CNC system, more flexible operation
Intelligent human-machine interaction interface

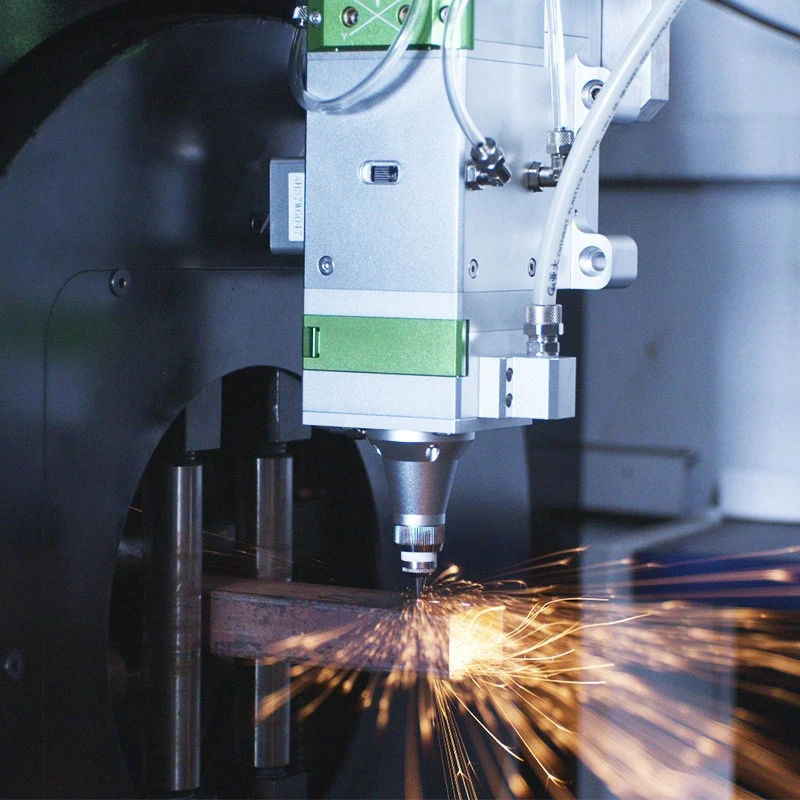

Automatic focusing laser head
Autofocus
The laser head with automatic focusing function can automatically adjust the focus without the need for manual focusing. The software can automatically and quickly replace different focusing lenses, meeting the cutting operation of different thickness plates. It is simple, convenient, fast, and accurate
Wide adjustment range
Accuracy of 0.01mm, suitable for different types of plates from 0 to 20mm
Long lifespan
Focusing on the surrounding components to achieve full cycle water cooling, achieving high-power, small volume long-term cutting without heating or fogging, and improving the lifespan of the cutting head.

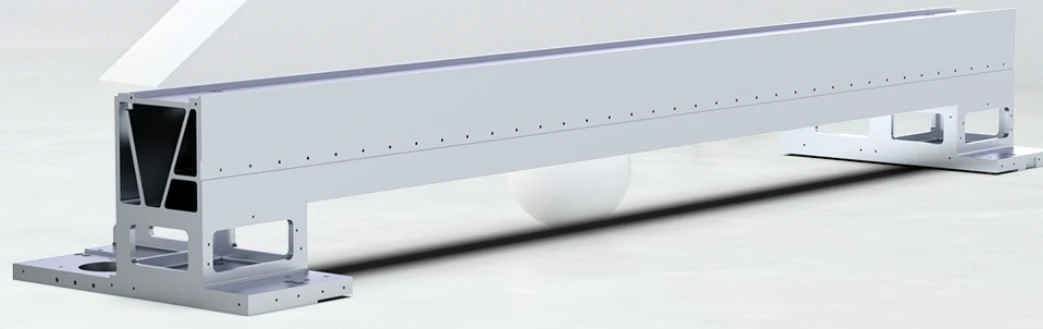

Aluminum profile crossbeam
The aluminum beam formed based on rigid flexible coupling analysis is simulated under actual working conditions, while bearing multi-source loads from the beam's own acceleration and motor torque. Reasonable layout design, high strength, strong stability, ensures long-term high-speed cutting
Bed annealing treatment process
A truss type composite plate welded bed is formed by inserting truss beams and truss plates, combined with high-strength welding process, high-temperature annealing to remove stress, prevent deformation, low vibration, and ensure high-precision cutting;
The guide rail surface of the bed installation is processed as a whole using a gantry machining center to ensure a flatness error of 0.02mm on the installation surface
Integrated electrical cabinet
The electric cabinet and the body are integrated, with a smaller area
Therefore, this fully sealed structure and standard wires can prevent dust from entering and dangerous flames
