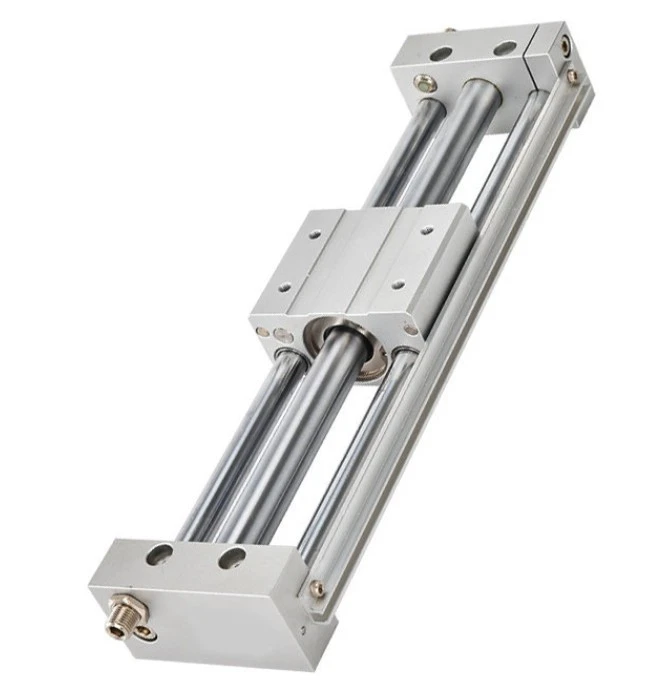

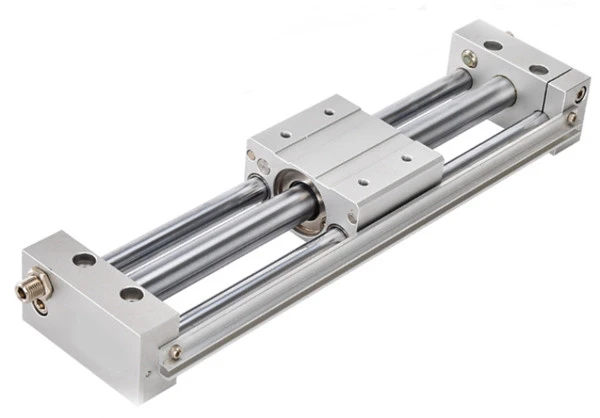

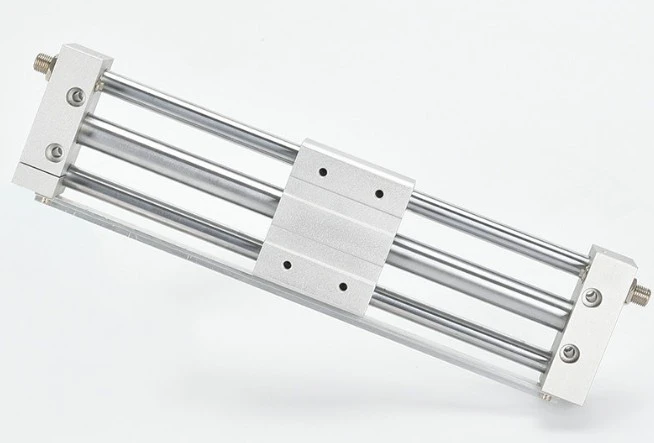

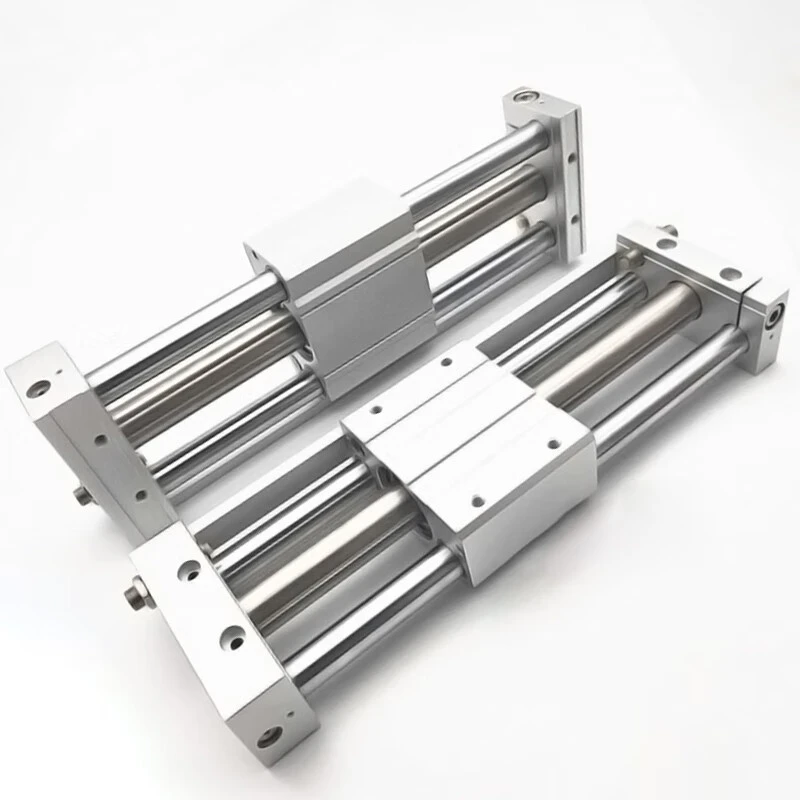

A rodless cylinder is a space-saving linear actuator that moves loads along its entire stroke length without an external rod. Used in automated assembly, packaging, material handling, and precision positioning.
Features
Sealed Magnetic Drive
No slits or bands-fully enclosed design blocks dust, coolant, and air leaks for reliable operation in harsh environments.
Space-Saving Stroke
Up to 800 mm travel in a footprint nearly equal to stroke length-ideal for compact machines where rod cylinders won't fit.
Built-In Dual Guides
Hardened steel guide rods support payloads up to 25 kg with minimal deflection-no external rails needed.
Why Choose Us
Customization Support
Need longer stroke (>800 mm), higher load capacity, IP65 sealing, or dual-carriage design? Our engineering team provides solutions within 72 hours.
Fast Sampling
Functional prototypes shipped in 3–5 days for machine validation.
Quality Assurance
Every unit undergoes pressure test, smoothness check, and magnetic coupling integrity verification; ISO 9001 certified.
Global Delivery
Standard orders dispatched in 10–15 working days; expedited production available for urgent projects.
Technical Backing
Application engineers provide load calculations, mounting guidelines, and system compatibility advice-before and after purchase.
Procurement Services
MOQ
Standard MRU models: 1 piece (ideal for prototyping or small machines)
Custom configurations: MOQ as low as 5 pcs
Packaging
Individual unit: Anti-static bag + foam wrap
Outer box: Reinforced export carton with moisture barrier
Long-stroke units: Wooden crate or custom pallet for safe transport
Shipping Options
Express: DHL/FedEx (3–7 days worldwide)
Air Freight: 7–12 days
Sea Freight: FOB Qingdao / CIF to your port (20–45 days)
Payment Methods
Samples/small orders: PayPal or T/T
Bulk orders: 30% deposit, 70% before shipment (T/T); L/C accepted for large contracts
FAQ
How does magnetic coupling compare to mechanical band-type rodless cylinders?
MRU series has no slits or bands-fully sealed design prevents dust ingress and air leakage, offering better reliability in dirty environments.
What's the maximum payload it can carry?
Depends on bore, stroke, and orientation. For example, MRU-32×500 supports up to 25 kg horizontally. We provide detailed load charts per model.
Can I install it vertically?
Yes-with speed control and proper counterbalance. The dual-guide design minimizes carriage tilt under gravity.
Are sensors included?
The carriage includes a magnetic strip. Sensors are sold separately but can be bundled upon request.
The product models and specifications are complete, and you can consult the customer service professional product engineer to select and quote for you.
