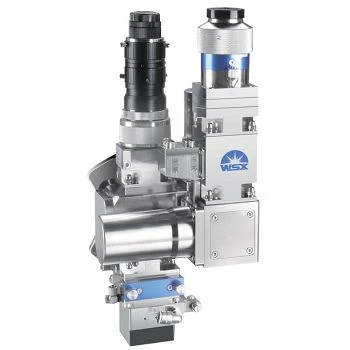

This is a 3,000W-capable fiber laser welding head with QBH input, 100 mm collimator, and 200 mm focus lens. It's used for deep-penetration welding of steel and aluminum in automotive components, battery housings, and structural parts-where consistent seam quality and stable thermal management matter.
Features
Stable at High Power
Advanced water cooling prevents overheating-ensures consistent performance during 24/7 operation up to 3000W.
EMI-Resistant for Harsh Factories
Full-metal shielding blocks electrical noise from motors and welders, reducing faults and downtime.
One Head, Multiple Materials
Welds steel, aluminum, copper, and coated sheets (0.1–3mm) with minimal parameter changes-no head swapping needed.
Why Choose Us
Customization Capability
Offer tailored focal lengths (e.g., 150mm / 250mm) or beam shaping options (ring-core, top-hat) upon request
Can integrate with your existing robotic arm or motion system (KUKA, Fanuc, ABB, etc.)
Provide OEM labeling and packaging for system integrators
Quality Assurance
All welding heads undergo 100% optical alignment verification and 8-hour high-power burn-in testing
Compliant with CE and RoHS standards
Optics sourced from certified suppliers with anti-reflective (AR) coating for 1070±10nm wavelength
Sample & Trial Support
Free sample unit available for qualified partners (deposit refundable upon bulk order)
On-site or remote welding demo support-send your material samples, we'll test and share video results
After-Sales Service
12-month warranty on all components
Lifetime technical support via email/WhatsApp/WeChat
Spare parts (protective lenses, nozzles, seals) shipped within 48 hours
Fast Delivery
Standard models in stock-shipped within 3–7 working days after payment.
Procurement Services
MOQ
1 piece for trial; volume discounts available from 5 units onward.
Packaging
Individual unit packed in anti-static foam inside a reinforced cardboard box
For export: double-layer carton with desiccant and shock indicators
Shipping Options
Express (DHL/FedEx/UPS): 3–7 days worldwide
Air freight or sea freight for bulk orders (FOB Jinan/Qingdao)
Payment Methods
T/T (30% deposit, 70% before shipment)
Alibaba Trade Assurance (recommended for first-time buyers)
L/C at sight (for orders > $ 10,000)
Documentation
Commercial invoice, packing list, CE certificate, and user manual provided in English.
fAQ
Can this welding head be used with a 6kW laser?
The current ND24 model is rated for up to 3000W. For 4kW–6kW applications, we offer a heavy-duty version with enhanced cooling and larger aperture-please contact us for specifications.
Is it suitable for handheld laser welding machines?
No. This is an industrial-grade fixed-mount welding head designed for robotic or gantry integration. For handheld use, please refer to our Handheld Laser Welding Heads series.
What's the difference between this and a laser cutting head?
Welding heads use longer focal lengths (e.g., 200mm vs. 125mm) to create larger, softer spots for melt pool control, while cutting heads focus to a tiny point for vaporization. They are not interchangeable.
Do you provide CAD drawings or STEP files for integration?
Yes-upon request, we provide 3D model files (STEP/IGES) and mounting dimension diagrams to assist your mechanical design team.
How often should the protective window be replaced?
Under normal conditions (clean environment, proper air shielding), every 3–6 months. In high-spatter applications (e.g., battery welding), replacement may be needed monthly.

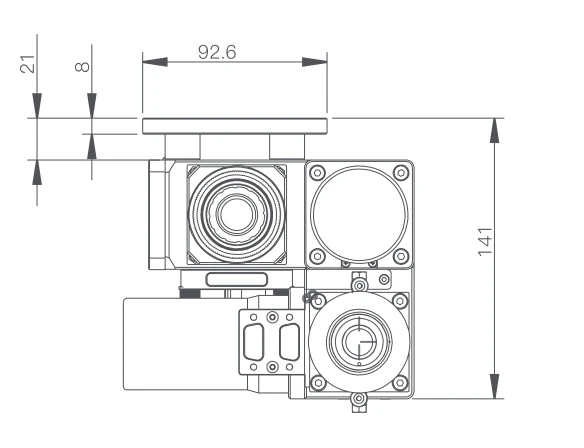

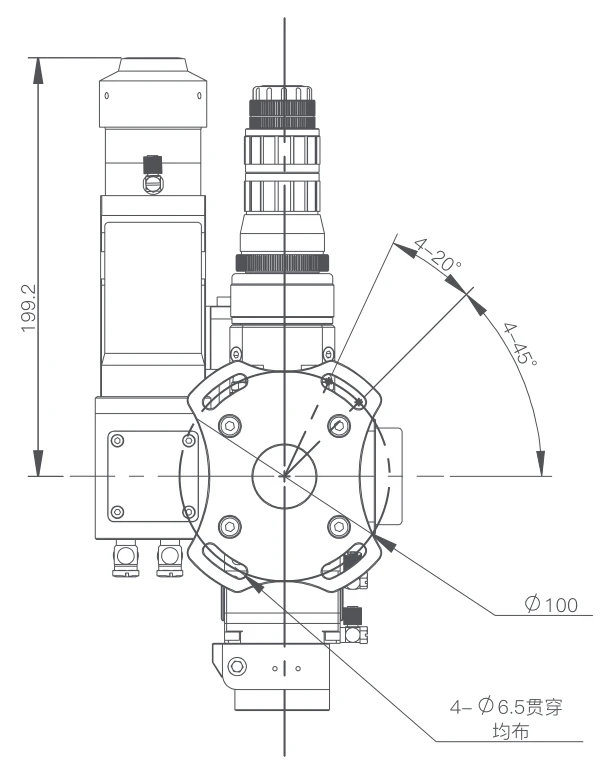

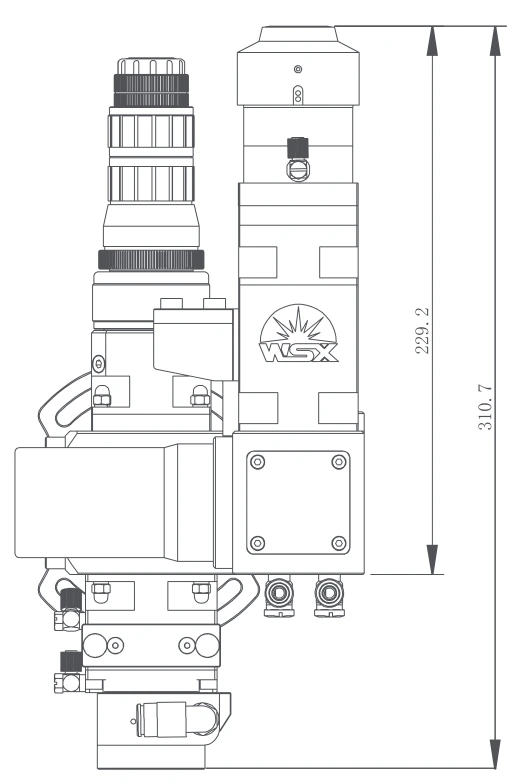

Product Size
Product Parameters
Maximum power: 3000W
Collimating focal length: 100mm
Focus length: 200mm
Weight: 3.6kg
Effective aperture:φ27mm
QBH connector can be installed
Suitable for various lasers
