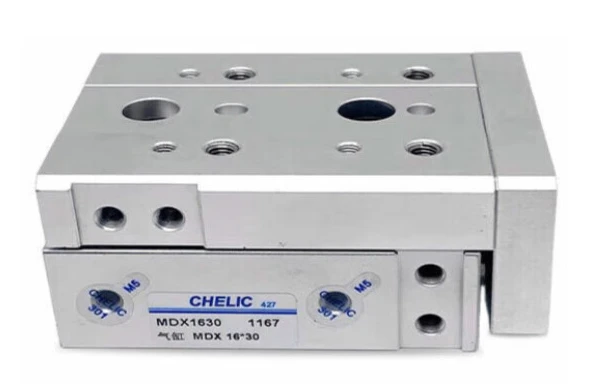

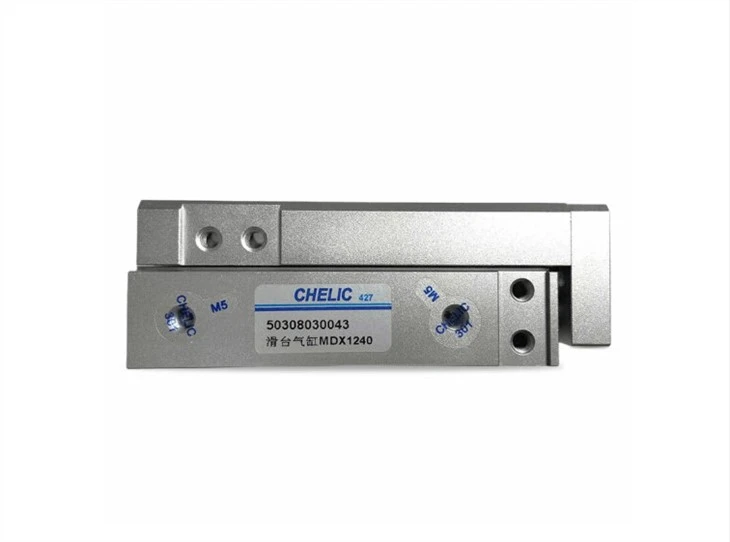

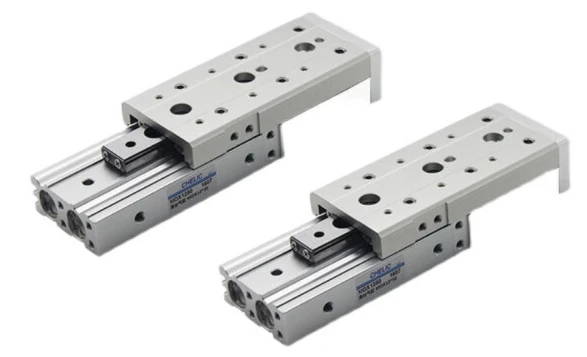

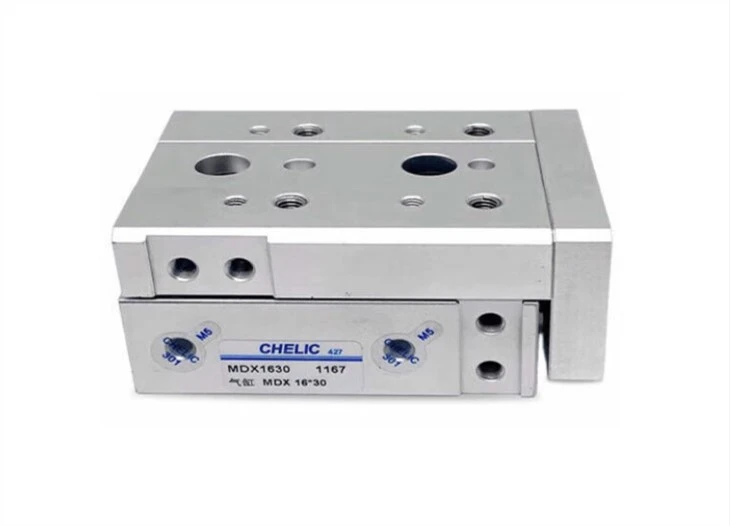

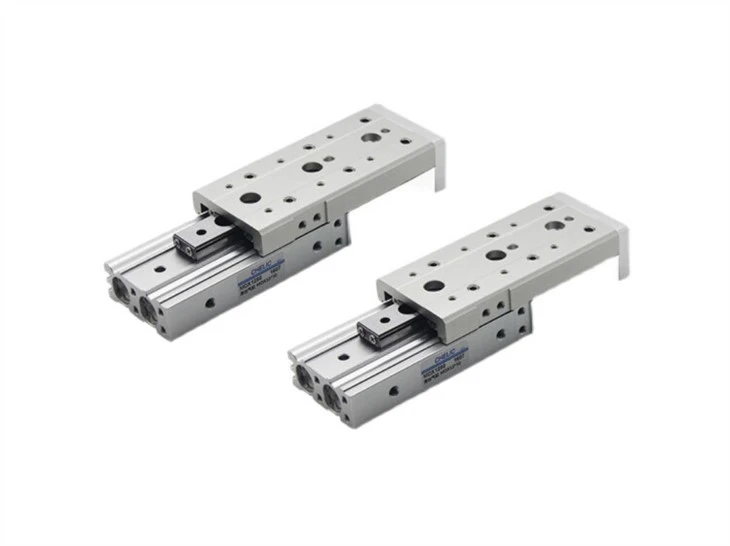

This is a slide cylinder with integrated linear guide rails and double pistons-delivers straight-line motion with high rigidity and no rotation. Used in pick-and-place units, part transfer systems, and precision positioning fixtures where alignment matters.
Features
Integrated Stainless Steel Linear Guides
Built-in SUS304 rails eliminate deflection under side loads-delivering ±0.05 mm repeatability for precision tasks like laser focusing or electronic part handling.
Dual-Piston
Two pistons in one compact body double thrust without increasing size-perfect for high-force tasks in tight spaces.
Sensor-Ready
Magnetic piston supports standard position sensors; sealed ball retainers protect against dust and chips-ensuring reliable operation in factory environments with minimal upkeep.
Why Choose Us
Rapid Customization
Need non-standard stroke, dual-stage action, IP65 protection, or special mounting? Our engineering team delivers solutions within 72 hours.
Fast Sampling
Functional prototypes shipped in 2–4 days for machine testing.
Quality Assurance
Every unit undergoes leak testing, smoothness validation, and load simulation before shipment; ISO 9001 certified production.
Global Support
Standard orders delivered in 7–15 days; technical support available in English, Spanish, and Russian.
Reliable Warranty
12-month coverage with 48-hour response for quality issues.
Procurement Services
MOQ
Standard models: 1 piece (ideal for prototyping or small machines)
Custom models: MOQ as low as 5 pcs
Packaging
Individual unit: Anti-static bag + foam padding
Outer box: Reinforced export carton (meets international shipping standards)
Bulk orders: Palletized or wooden crate upon request
Shipping Options
Express: DHL/FedEx (3–7 days worldwide)
Air Freight: 7–12 days
Sea Freight: FOB Qingdao / CIF to your port (20–45 days)
Payment Methods
Samples/small orders: PayPal, T/T
Bulk orders: 30% deposit, 70% before shipment (T/T); L/C accepted for large contracts
fAQ
How does this differ from a standard rodless cylinder?
The slide cylinder integrates high-rigidity stainless steel linear guides-offering superior anti-deflection performance under side loads, unlike belt- or magnet-driven rodless types.
What's the maximum allowable moment load?
Depends on bore and stroke. For example, MDXL-20×100 supports up to 85 N·m in Mx direction. We provide detailed load charts per model.
Can I mount it vertically?
Yes-with proper counterbalancing or reduced speed to manage gravity effects. We offer guidance based on your orientation.
Are sensors included?
The piston includes a magnetic ring. Sensors are sold separately but can be bundled upon request.
The product models and specifications are complete, and you can consult the customer service professional product engineer to select and quote for you.
